Triplex Plunger Pumps

Triplex Plunger Pumps

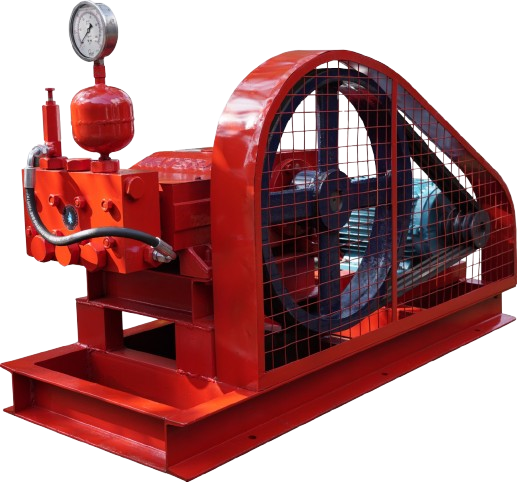

Waterjet triplex plunger pump with motor and belt guard

Reverse Osmosis for industrial applications

  • We are Working Since 2014 experience in the Reverse Osmosis/Desalination Industry, Waterjet pumps has developed a reputation as the industry leader in high-pressure positive-displacement pumps. Our extensive line of 316 and Duplex stainless steel pumps offer unsurpassed corrosion-resistance, strength and long life, even in the harshest environments. Our positive displacement design offers 85-95% efficiency. Our pump design also provide easy field service requiring only standard tools, with parts available worldwide. With field proven dependability in hundreds of applications around the globe, Waterjet Pumps provides the best value in the industry.

Waterjet Pumps has developed a reputation as the industry leader for high-pressure SWRO pumps due to the long-life and dependable performance. Materials of construction include SS316 and duplex stainless steel, which offer excellent corrosion resistance, strength and life – even in the harshest environment.

Seawater Reverse Osmosis Desalination (SWRO) is a process that removes salt and other contamination from salt water to produce fresh water Common applications include:


Common Applications

  • - Municipalities
  • - Armed services
  • - Marine industry
  • - Resorts
  • - Off-shore platforms

Waterjet pumps and systems is a widely held Indian Manufacture of high pressure positive Displacement triplex plunger pump, company provides unmatched combination of application expertise and positive displacement pumping products to meet pumping needs of its customer.

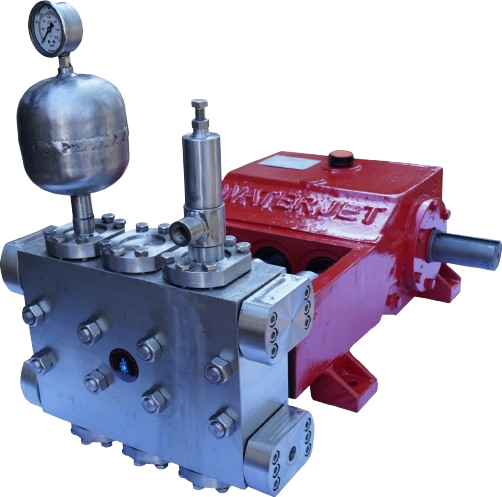

Waterjet stainless steel triplex plunger pump
simplify

we offer one of the industry's broadest selection of pumping technologies and products designs. we are dedicate to assist our customer to achieve the best performance of their systems, our products rang including pump having pressure up to 1500kg/cm2. and flow up to 300 m2/hr. we are well known for our ability to manufacture built - to - order custom pumps for specific application..

Pump Models

Sr. No Model Capacity in LPM Capacity in LPH Plunger Dia ⌀ SPM Pressure in Bar Brochure
1 WJ - 10 8-24 480-1440 12-20 MM 1440 70-250
2 WJ - 25 9-46 540-2760 10-32 MM 750-1440 50-500
3 WJ - 45 21-83 1260-4980 30-50 MM 250-750 100-300
4 WJ - 55 15-172 900-10320 30-70 MM 250-750 70-550 1 2
5 WJ - 75 57-287 3420-17220 60-85 MM 100-400 80-250 1 2
6 WJ - 100 131-631 7860-37860 75-95 MM 100-250 60-250 1 2
7 WJ - 150 143-794 8580-47640 75-125 MM 100-300 100-250 -
8 WJHG - 75 9-287 540-17220 20-85 MM 150-250 90-2000
9 WJHG - 100 15-69 900-4140 20-40 MM 187 150-750
10 WJ - 180 406-1072 24360-64320 80-150 MM 100-200 70-200 -
11 WJ - 250 858-1788 51480-107280 90-150 MM 100-200 80-170 -
12 WJ - 350 950-6955 57000-417300 80-250 MM 80-150 60-350 -
