Triplex Plunger Pumps

Triplex Plunger Pumps

about

Reverse Osmosis for industrial applications

  • We are Working Since 2014 experience in the Reverse Osmosis/Desalination Industry, Waterjet pumps has developed a reputation as the industry leader in high-pressure positive-displacement pumps. Our extensive line of 316 and Duplex stainless steel pumps offer unsurpassed corrosion-resistance, strength and long life, even in the harshest environments. Our positive displacement design offers 85-95% efficiency. Our pump design also provide easy field service requiring only standard tools, with parts available worldwide. With field proven dependability in hundreds of applications around the globe, Waterjet Pumps provides the best value in the industry.

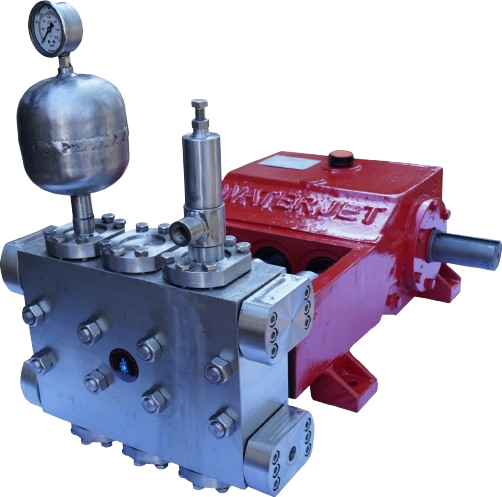

Waterjet Pumps has developed a reputation as the industry leader for high-pressure SWRO pumps due to the long-life and dependable performance. Materials of construction include SS316 and duplex stainless steel, which offer excellent corrosion resistance, strength and life – even in the harshest environment.

Seawater Reverse Osmosis Desalination (SWRO) is a process that removes salt and other contamination from salt water to produce fresh water Common applications include:


Common Applications

  • - Municipalities
  • - Armed services
  • - Marine industry
  • - Resorts
  • - Off-shore platforms

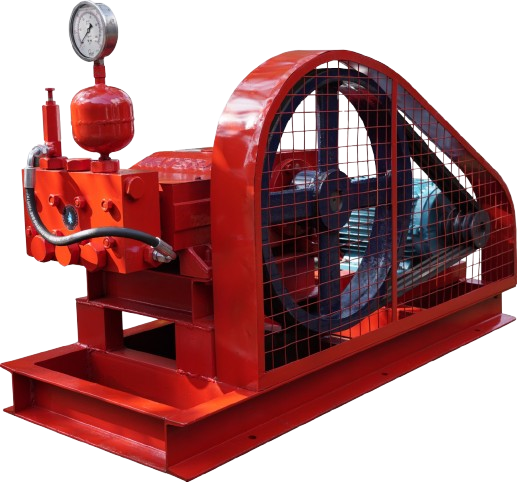

Waterjet pumps and systems is a widely held Indian Manufacture of high pressure positive Displacement triplex plunger pump, company provides unmatched combination of application expertise and positive displacement pumping products to meet pumping needs of its customer.

simplify
simplify

we offer one of the industry's broadest selection of pumping technologies and products designs. we are dedicate to assist our customer to achieve the best performance of their systems, our products rang including pump having pressure up to 1500kg/cm2. and flow up to 300 m2/hr. we are well known for our ability to manufacture built - to - order custom pumps for specific application..

Pump Models

Sr. No Model Capacity in LPH Plunger Dai ⌀ SPM
1 WJ-10 0-300 19 MM 350
2 WJ-20 0-700 28 MM 250
3 WJ-25 700-1200 32 MM 200
4 WJ-35 1200-1800 42 MM 200
5 WJ-45 1800-3600 52 MM 200
6 WJ-50 4000-7000 58 MM 200
7 WJ-55 6000-8500 72 MM 200
8 WJ-65 8000-12000 78 MM 200
9 WJ-70 12000-14000 86 MM 200
10 WJ-75 15000-16000 92 MM 200
11 WJ-80 16000-19000 98 MM 200
12 WJ-100 25000-30000 96 MM 200
13 WJ-150 30000-40000 104 MM 200
14 WJ-180 40000-52000 112 MM 200
15 WJ-200 50000-60000 110 MM 200
16 WJ-250 60000-70000 112 MM 200
17 WJ-300 70000-80000 102 MM 200
18 WJ-310 80000-90000 116 MM 200
19 WJ-350 90000-100000 108 MM 200
20 WJ-355 100000-130000 122 MM 200
